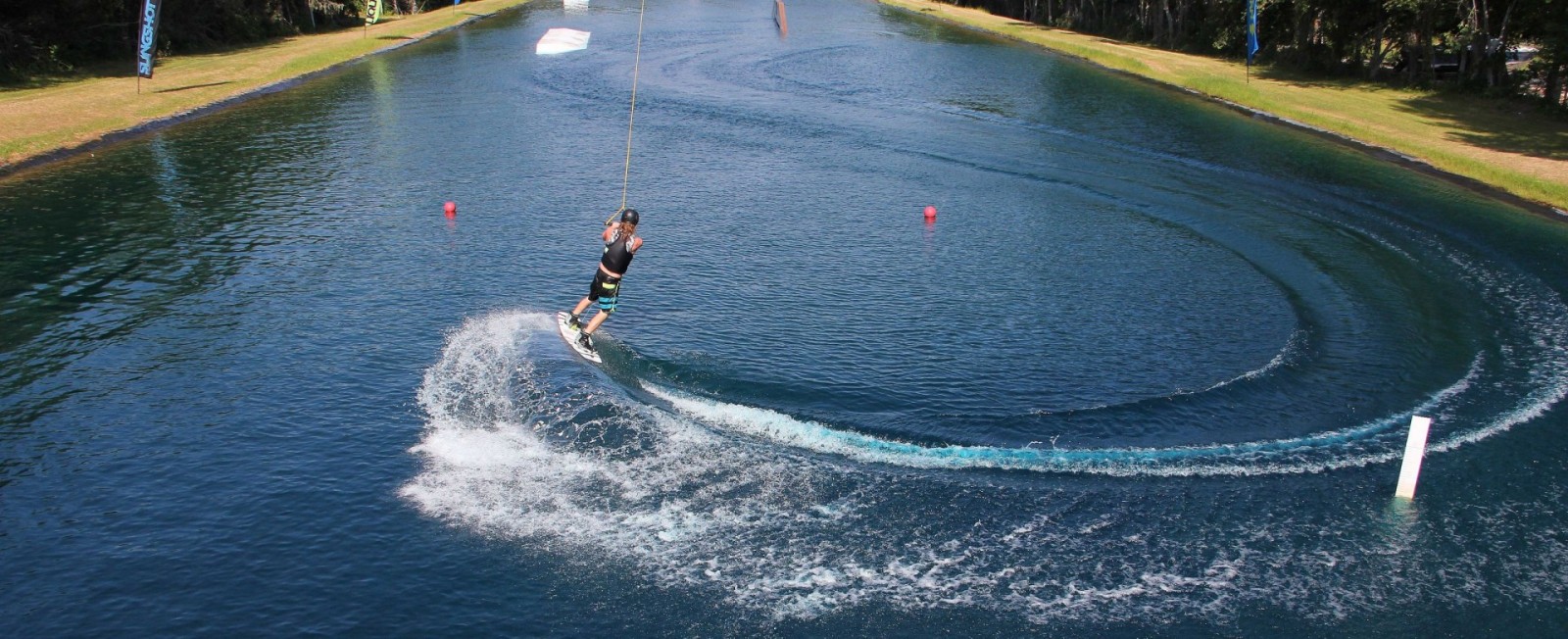

Zero Gravity two-tower portable wakeboard cable system panoramic view across a lake
Cable System

Two-Tower Portable
Cable System

Industrial-grade components. Modular design. 1–2 day installation.

Built for Performance

Designed for wake parks, resorts, events, and private lakes. Our two-tower cable system delivers professional performance with a portable, modular design. Every component is industrial-grade — not because it’s an upgrade, but because it’s the only way we build.

Complete Zero Gravity cable system installed at a wake park showing both towers and cable line

Technical Specifications

Every number, verified. Every component, industrial.

Tower Height 9.3m  (6.4m without mid-section)
Max Distance 240m
Max Speed 40 km/h
Motor Siemens 9kW  (11kW optional)
Motor Type AC frequency-regulated
System Weight ~2 tonnes
Section Weight 70kg per section
Tower Design Three-section A-frame
Assembly Time 1–2 days
Cable Steel wire rope, 500m
Corrosion Protection Hot-dip galvanized + stainless steel

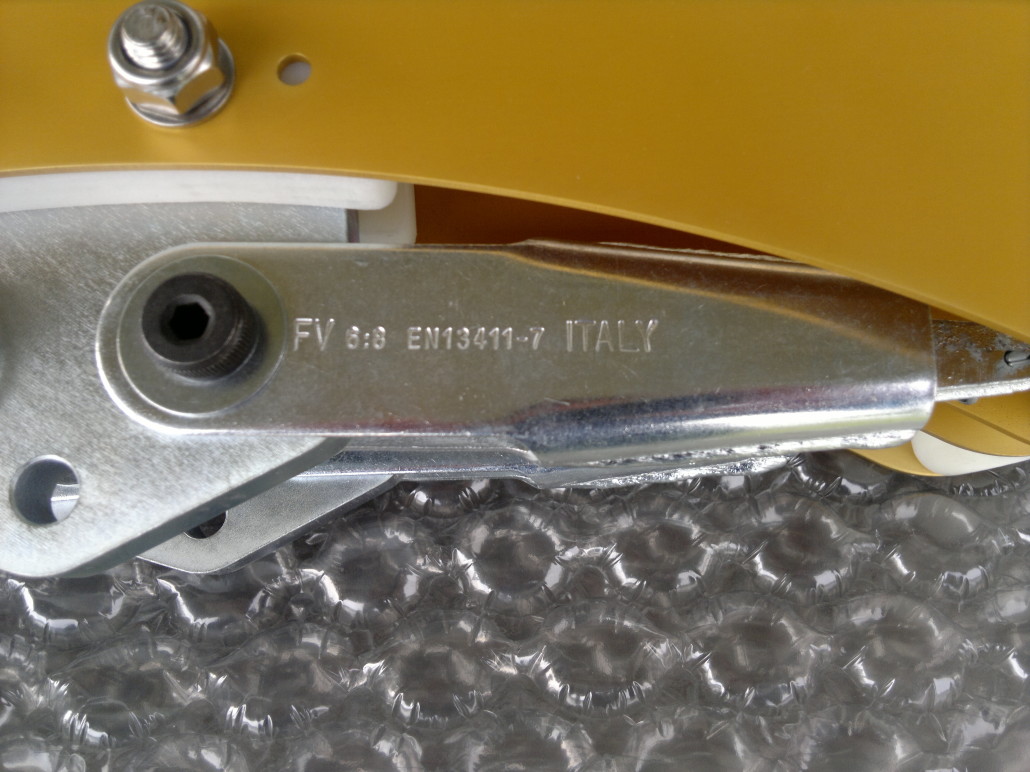

Bearings SKF industrial grade
Control iPad/PC wireless + wired remote
Rider Modes Beginner + Pro
Safety Emergency stop, fault detection, hour logging
Power Supply 3-phase 400V
Snow Compatible Yes, no modifications

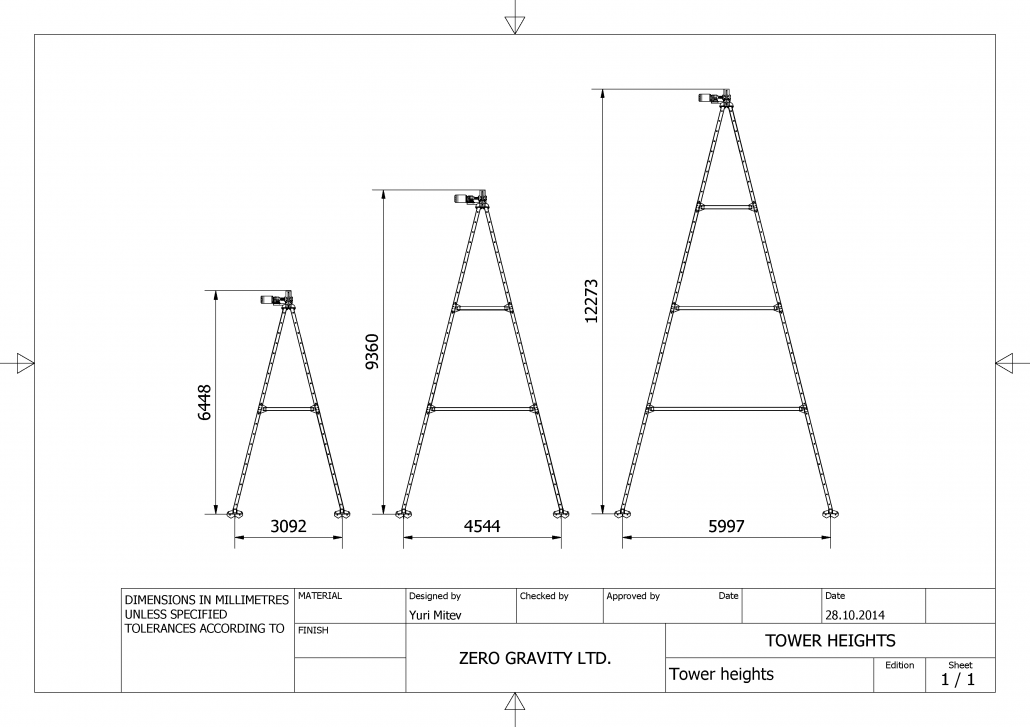

Technical diagram showing Zero Gravity tower height configurations: 9.3m full height and 6.4m without mid-section
Tower Height Configuration

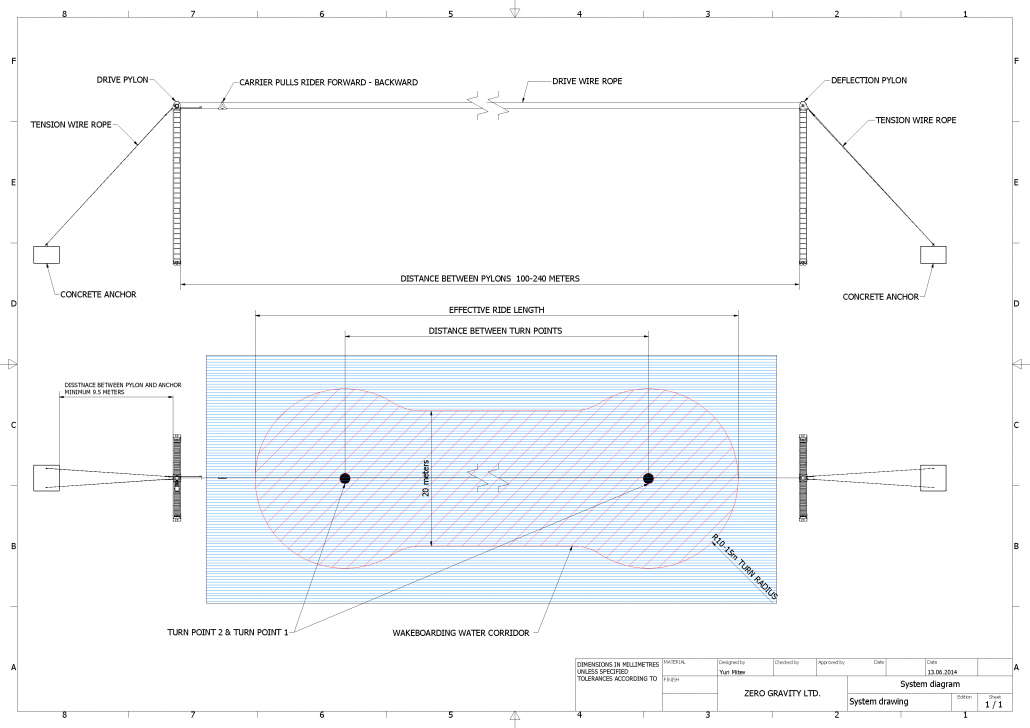

Full system schematic showing two-tower layout with motor unit, deflection unit, cable path and control systems
System Schematic

Key Features

What sets Zero Gravity apart from the rest.

01

Siemens Automation

Precision engineering from the world’s leading industrial automation brand. Not a compromise — the standard.

9kW Siemens motor with frequency regulation
Precise speed control 0–40 km/h
Smooth acceleration curves for beginners
Full power mode for pros
Optional upgrade to 11kW

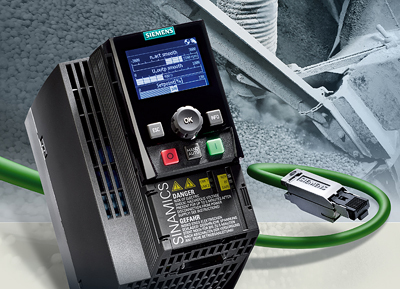

Siemens drive unit and automation controller powering the Zero Gravity cable system Siemens Drive Unit
02

iPad/PC Control Interface

Full system control from your pocket. Monitor, adjust, and manage riders without leaving the dock.

Full wireless control from any device
Real-time system monitoring
Rider profiles with speed presets
Lap counting and time limits
Work hour logging and maintenance alerts
Zero Gravity cable system control panel with iPad wireless interface and wired remote Wireless Control
03

Hot-Dip Galvanized Construction

Built to survive saltwater, UV, and decades of weather. While competitors paint their steel, we galvanize everything.

All structural steel is hot-dip galvanized
Stainless steel hardware throughout
Designed for saltwater, UV, and extreme weather
Far more durable than painted steel
Close-up of hot-dip galvanized steel construction on Zero Gravity cable tower Galvanized Steel
04

Portable & Modular

Ship it in a standard container. Assemble it with a small team. No crane required.

Three-section A-frame towers (70kg each)
Assembled by a small team in 1–2 days
Perfect for events and festivals
Equally suited for permanent installations
Team assembling a Zero Gravity cable system tower during installation Modular Assembly
05

Safety Systems

Multiple layers of protection. Automated monitoring. European standards compliant.

Emergency stop mechanism
Automatic fault detection
Work hours logging
Maintenance warning system
European standards compliant
Zero Gravity safety system component including emergency stop and fault detection hardware Safety & Control

What’s Included

Complete system. No hidden costs. No surprise extras.

€35,000
Complete System — EXW Varna, Bulgaria
Two A-frame towers (9.3m)
9kW Siemens drive unit
Deflection unit
Electrical control cabinet
500m drive wire rope
4× tension wire ropes
iPad/PC wireless interface
Wired remote control
Complete fixtures & fasteners
Installation & maintenance manual
Let’s Talk

Ready to Build Your
Cable Park?

Same industrial specs the big brands charge €50K–80K+ for. We do it for €35,000.
